What Are the Differences Between the DE-3100 and DE-4100, and the Pro version?
A dermatoscope is more than just a magnifying glass with a light. It utilizes polarized and non-polarized light to eliminate surface reflection from the stratum corneum, allowing a clear view of deeper skin layers. Whether you are a seasoned dermatologist or a general practitioner, the choice of device impacts your diagnostic workflow. The IBOOLO series…
A dermatoscope is more than just a magnifying glass with a light. It utilizes polarized and non-polarized light to eliminate surface reflection from the stratum corneum, allowing a clear view of deeper skin layers. Whether you are a seasoned dermatologist or a general practitioner, the choice of device impacts your diagnostic workflow. The IBOOLO series offers various configurations in lens size, battery life, and light spectrums to cater to different clinical needs. Understanding the nuances between the DE-3100 and DE-4100 series will help you select the model best suited to your requirements.
What Models Are Included in the DE-3100 and DE-4100 Series?
The IBOOLO product line discussed here includes four models: DE-3100, DE-3100 Pro, DE-4100, and DE-4100 Pro. Each pair within the same series shares the same external design, while differences exist primarily in lighting modes and functional capabilities. The DE-3100 and DE-3100 Pro are identical in appearance, as are the DE-4100 and DE-4100 Pro. However, there are significant visual and structural differences between the DE-3100 series and the DE-4100 series.
How Do the External Designs of DE-3100 and DE-4100 Differ?

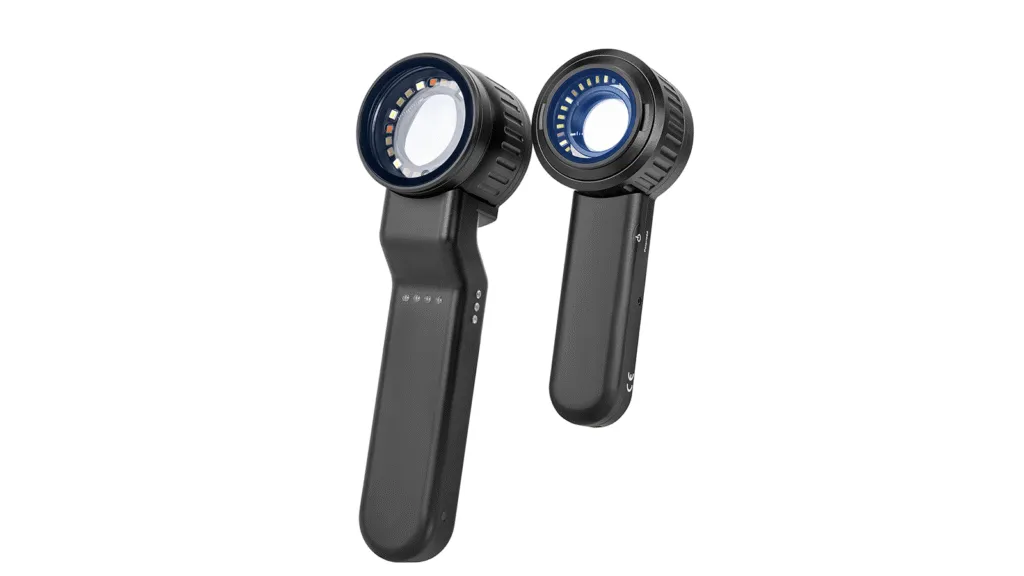

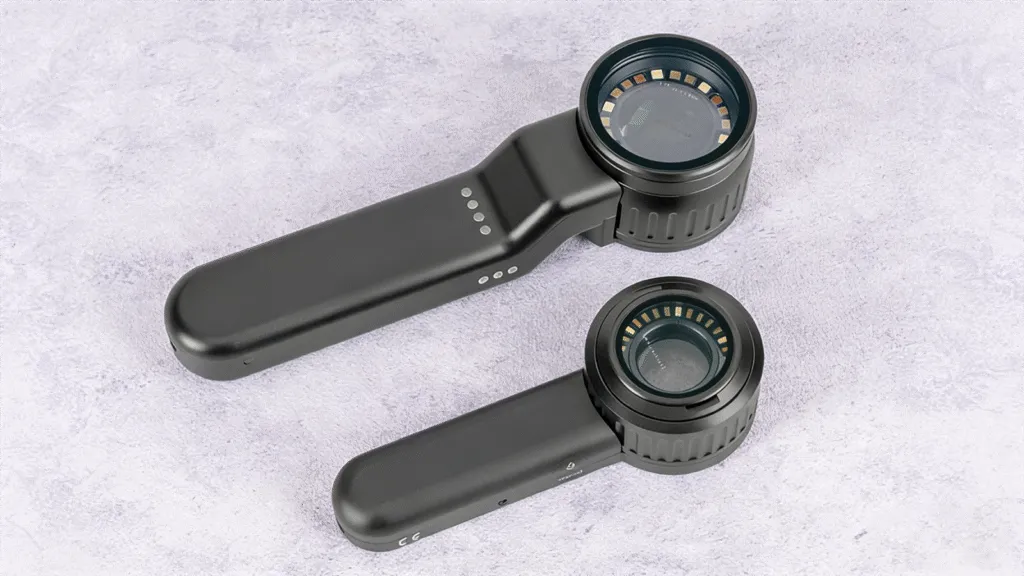

One of the most noticeable differences between the DE-3100 and DE-4100 is the size of the viewing window. The DE-4100 features a viewing window of approximately 32 mm, while the DE-3100 has a smaller viewing window of about 22 mm. For clinicians who prefer handheld dermoscopy with direct, unaided eye observation, a larger viewing window provides a wider field of view and a more comfortable visual experience. As a result, the DE-4100 is generally more user-friendly for prolonged handheld examination.
Beyond the viewing window size, the overall form factor of the DE-4100 differs markedly from that of the DE-3100, reflecting its design focus on enhanced visual comfort and extended use. These external differences are consistent across both the standard and Pro versions within each series.
Why Does Battery Capacity Matter in Daily Use?
Battery capacity plays a key role in determining operating time and overall convenience. The DE-4100 and DE-4100 Pro are equipped with a 1500 mAh battery, providing longer usage time and supporting extended clinical sessions without frequent recharging. In contrast, the DE-3100 and DE-3100 Pro are equipped with a 1000 mAh battery, which is sufficient for routine use but offers a shorter operating duration.
For clinicians who perform frequent examinations or work in settings where charging opportunities are limited, the larger battery capacity of the DE-4100 series may offer a practical advantage.
How Do Lighting Adjustment Features Differ Between the Models?

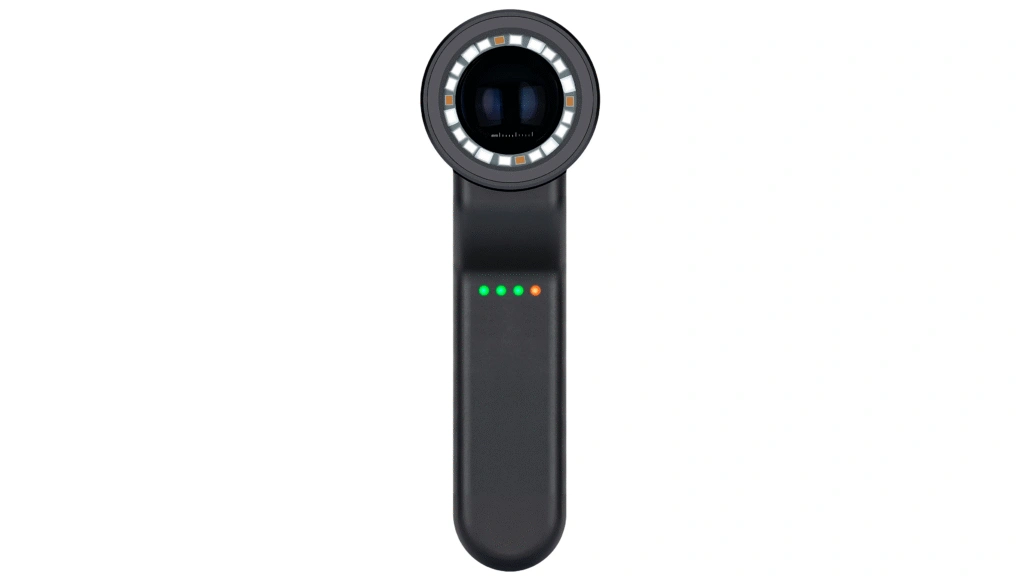

Lighting control is a critical component of dermoscopy, as different environments and skin types require different illumination levels. The DE-4100 and DE-4100 Pro both feature three-level brightness adjustment, allowing users to adapt the light intensity to various clinical conditions and ambient lighting environments. This flexibility enhances visual comfort and image clarity.
In contrast, the DE-3100 and DE-3100 Pro do not include multi-level brightness adjustment. Their lighting is fixed, which simplifies operation but offers less adaptability in challenging lighting conditions. This distinction reflects different design priorities between the two series.
What Makes the Pro Versions Different From the Standard Versions?

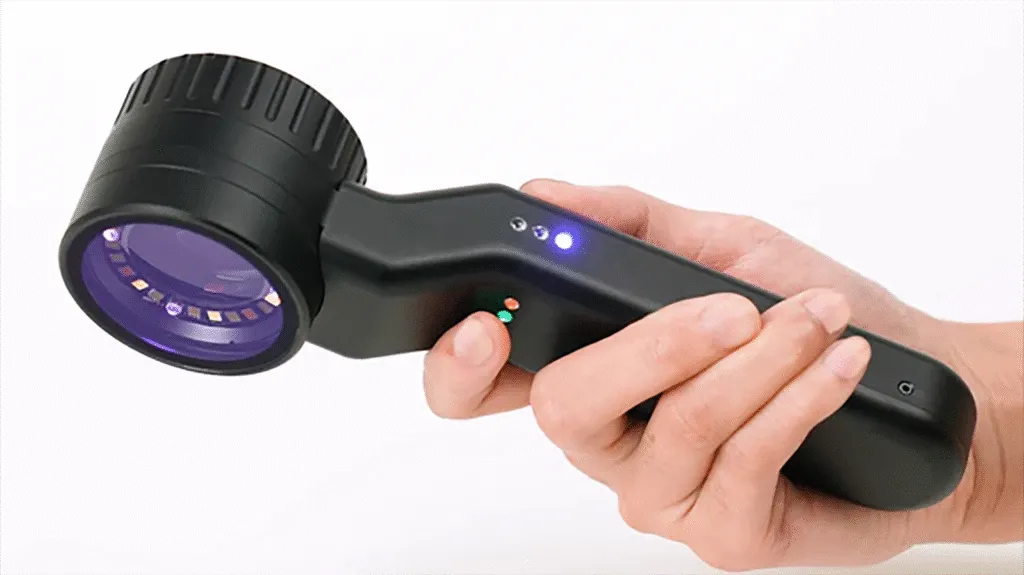

The most important distinction between the Pro versions and the standard versions is the inclusion of ultraviolet (UV) illumination. Both the DE-3100 Pro and the DE-4100 Pro are equipped with UV light, while the standard DE-3100 and DE-4100 are not.
UV illumination can be useful for observing certain fungal infections and other skin conditions that may show characteristic fluorescence under ultraviolet light. While UV is not required for routine dermoscopy, its inclusion expands the functional range of the device and supports more specialized examinations.
Apart from UV capability, there are also subtle differences in lighting mode combinations between the standard and Pro models, reflecting their intended clinical use.
What Lighting Modes Are Available on Each Model?
The DE-3100 offers five lighting modes: white polarized light, amber polarized light, white-amber polarized light, white non-polarized light, and white-amber non-polarized light.
The DE-3100 Pro provides three lighting modes: white polarized light, white-amber non-polarized light, and UV light. Compared with the standard version, the Pro model simplifies the lighting options while adding ultraviolet capability.
The DE-4100 includes four lighting modes: white polarized light, white-amber polarized light, amber polarized light, and white non-polarized light. These modes are designed to balance versatility with operational simplicity.
The DE-4100 Pro also offers four lighting modes, consisting of white polarized light, white-amber polarized light, white non-polarized light, and UV light. This configuration replaces amber polarized light with UV, reflecting the Pro model’s emphasis on expanded diagnostic functionality.
Can All Four Models Support Both Direct Viewing and Digital Imaging?

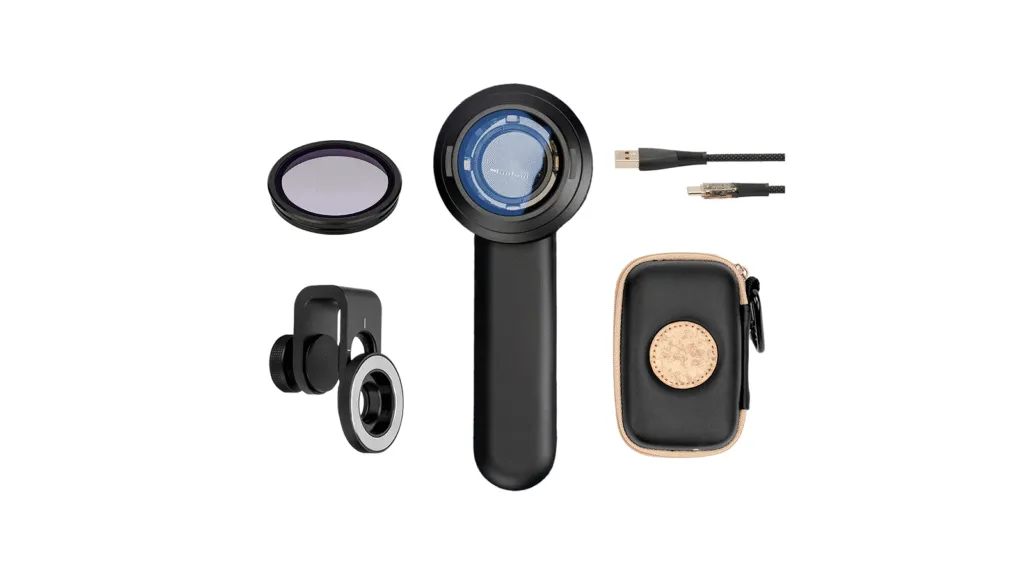

All four dermatoscopes support both handheld, unaided eye observation and smartphone connectivity. Users can examine skin lesions directly through the viewing window or connect the device to a mobile phone to capture and store images. This dual capability allows flexibility in clinical practice, enabling quick visual assessment as well as detailed documentation for follow-up, consultation, or patient education.
How Do These Models Compare in Terms of Clinical Positioning?
The DE-3100 and DE-3100 Pro are well suited for users who prefer a compact device with straightforward operation and a smaller viewing window. They are appropriate for routine examinations and environments where simplicity and portability are priorities.
The DE-4100 and DE-4100 Pro are positioned for users who value a larger field of view, longer battery life, adjustable brightness, and enhanced comfort during handheld observation. These features make the DE-4100 series particularly suitable for extended clinical use.
The choice between standard and Pro versions depends primarily on whether UV illumination is required.
What Warranty and Support Are Provided?
All IBOOLO DE-3100, DE-3100 Pro, DE-4100, and DE-4100 Pro dermatoscopes are covered by a two-year warranty. During this period, any product issues are eligible for free repair or replacement. And if you have any questions while using the product, feel free to contact us by email at iboolo@iboolo.com.
